1.EN 1433 Drainage Channel Grating(also called strip drain grates, trench drain grating or Line/Linear drainage) are a part of a channel drainage system for vehicular and pedestrian areas.
Remarks:EN1433 Standard specifies Classification, design and testing requirements, marking and evaluation of conformity of drainage channels for vehicular and pedestrian areas.It is a standard for the linear finished drainage channel for the collection and conveyance of surface water when installed within areas subjected to pedestrian and/or vehicular traffic.
2. Joyyr's EN 1433 Drainage Channel Grating in four widths, 100mm, 150mm,200mm and 300 mm,made in ductile cast iron 500-7,moulded by automatic moulding machine.
3.LOADING CLASSES
Loading class A 15, Loading class B 125, Loading class C 250, Loading class D 400, Loading class E 600, Loading class F 900.
4.List of some specification of drainage channel gratings
Pictures

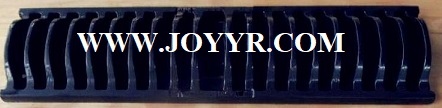

1. Ductile iron pedestrian friendly Heel guard non slip grate4.List of some specification of drainage channel gratings
|
Clear Opening mm |
OVERALL SIZE mm |
STANDARD | GRADE |
| 100 | 500x122x20 | EN1433 | C250 |
| 100 | 500x122x20 | EN1433 | C250 |
| 100 | 498x124x20.5 | EN1433 | C250 |
| 100 | 498x124x20.5 | EN1433 | C250 |
| 100 | 498x124x20.5 | EN1433 | E600 |
| 100 | 500x122x20 | EN1433 | E600 |
| 100 | 500x122x20 | EN1433 | E600 |
| 100 | 498x130x45 | EN1433 | F900 |
| 100 | 500x125x20 | EN1433 | F900 |
| 100 | 500x125x20 | EN1433 | F900 |
| 150 | 498x174x19.5 | DIN19580 | C250 |
| 150 | 500x180x20 | EN1433 | D400 |
| 150 | 498x174x19.5 | DIN19580 | E600 |
| 150 | 497x184x46 | EN1433 | F900 |
| 150 | 500x175x20 | EN1433 | F900 |
| 200 | 498x238.5x25 | DIN19580 | C250 |
| 200 | 500x230x20 | EN1433 | D400 |
| 200 | 498x239x24.5 | DIN19580 | E600 |
| 200 | 500X225X20 | EN1433 | F900 |
| 300 | 550x330x20 | EN1433 | D400 |
| 300 | 498x340x24.5 | EN1433 | E600 |
| 300 | 500X325X20 | EN1433 | F900 |
Pictures

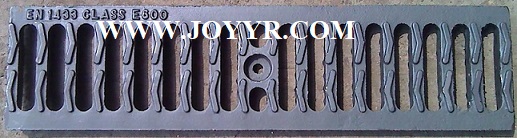

2. Ductile iron channel grating EN1433 E600

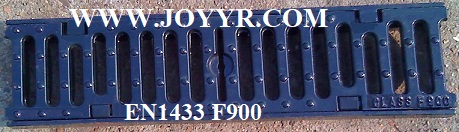

3.Ductile iron channel grating F900 powder coating

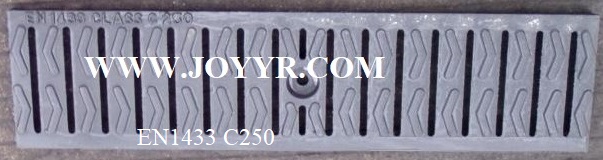

4.Ductile iron heelguard nonslip sump grate

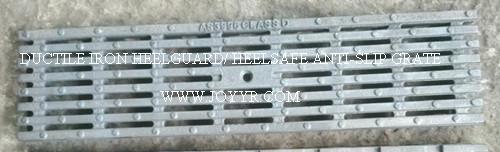

5.Ductile iron heelsafe anti-slip grate

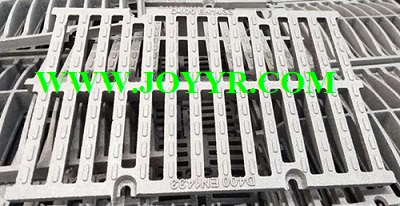

6.Galvanized Ductile iron grating D400

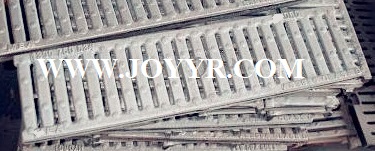

7.Galvanized Ductile iron heelsafe anti-slip grate
Coating: Black bituminous coating, epoxy powder coating, hot-dip galvanizing, waterborne Paint, matt black paint, enamel,quick-drying coating etc.
